Adapter -MRP for RD/RZ350 type reed valve to Malossi VR-One engine casing- Vespa Largeframe PX, LML, Rally, Sprint, Cosa, T5 125cc speciale

Description

This CNC-milled adapter allows you to drive a Yamaha RD350 membrane or the matching VForce membrane in the Malossi VR-One membrane box.

The adapter is simply screwed onto the Malossi VR-One motor housing together with the Malossi membrane box using the supplied screws. Afterwards the RD350 membrane fits into the box and all RD350 intake manifold tops can be installed.

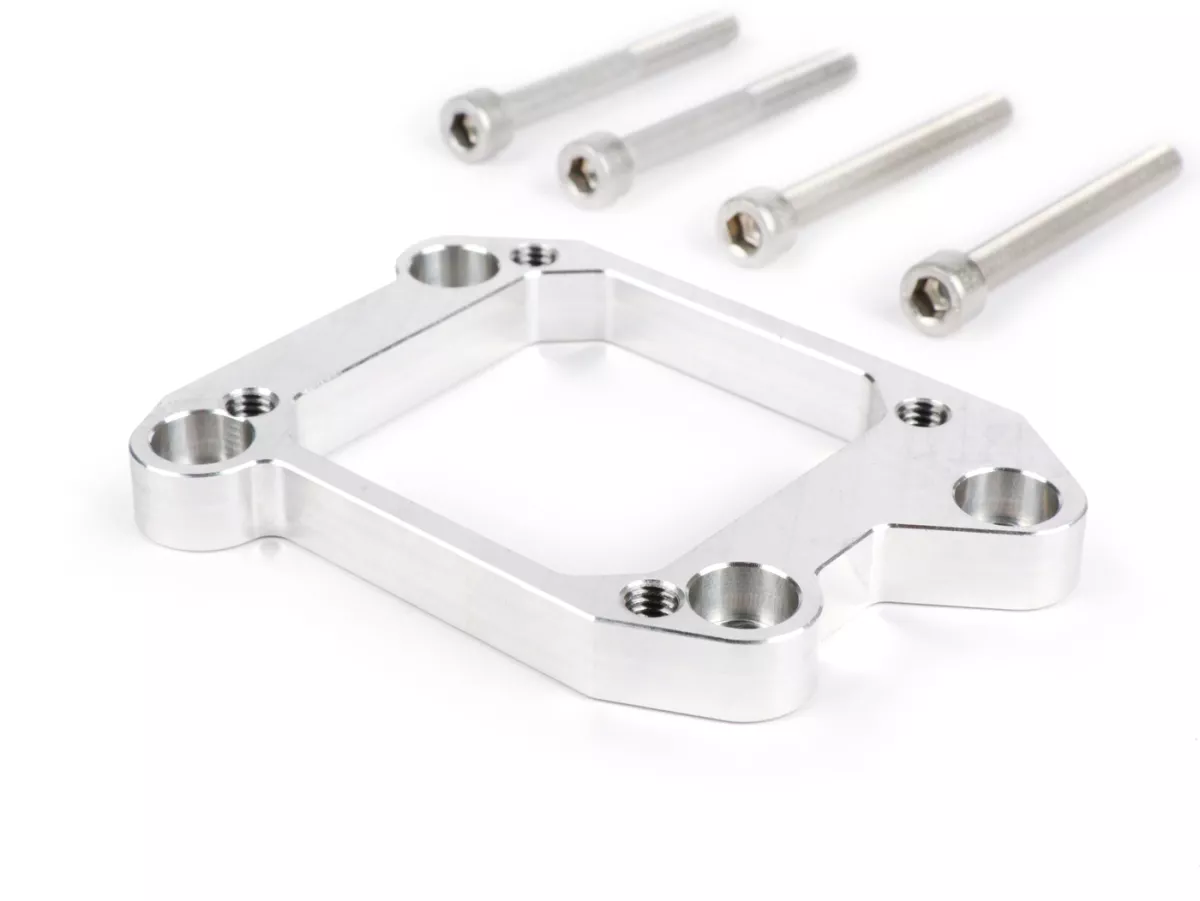

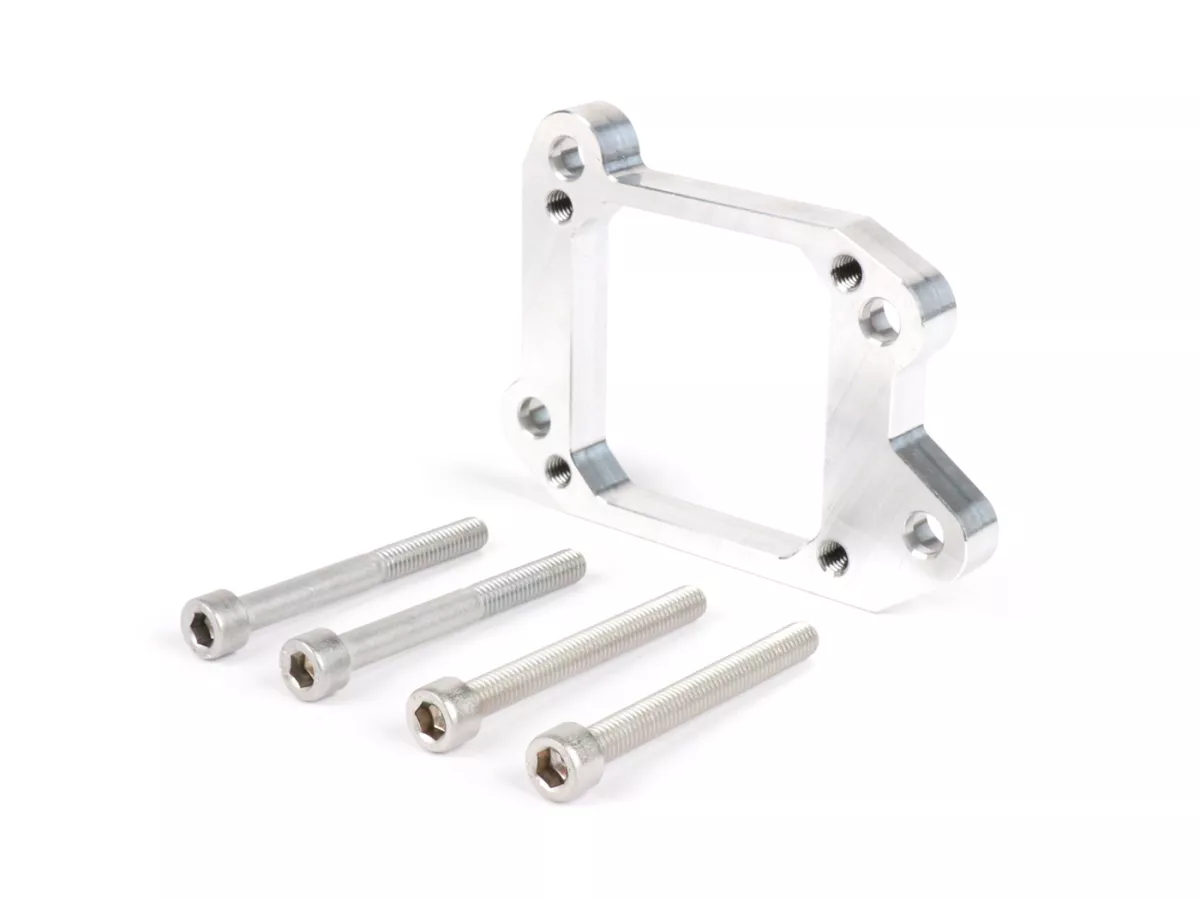

Scope of delivery:

• CNC-milled adapter made of aluminium

• All required screws

Attention: Only suitable with the Malossi VR-One motor housing and the membrane box supplied with this motor housing.

Ideal for people who want to change to this motor housing and already have an intake manifold of type RD350 or want to use a VForce diaphragm (further).

The rubber intake manifold supplied by Malossi cannot be installed with this adapter! The RD diaphragm and the RD intake manifold upper part must be sanded a little bit at the front corner. Unfortunately, this cannot be avoided, as the position of the Malossi membrane box is fixed and the membrane must of course be positioned centrally. But this is done in 1 minute with the file.
