Description

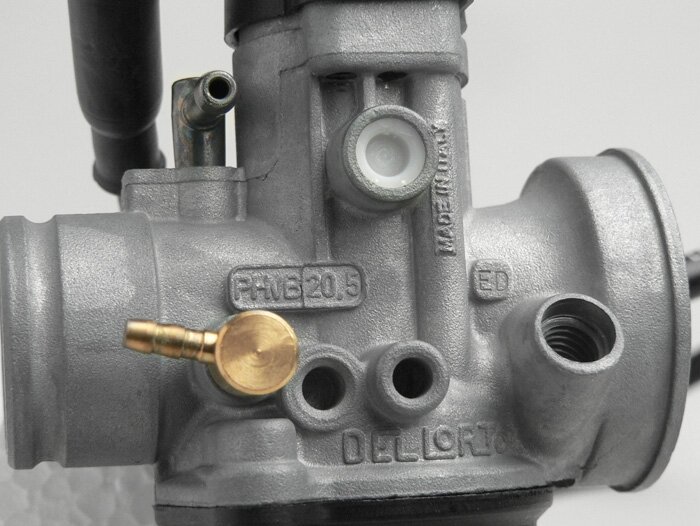

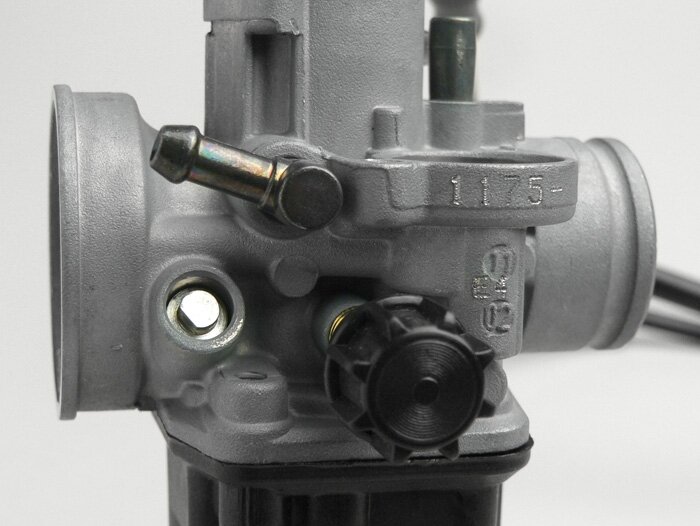

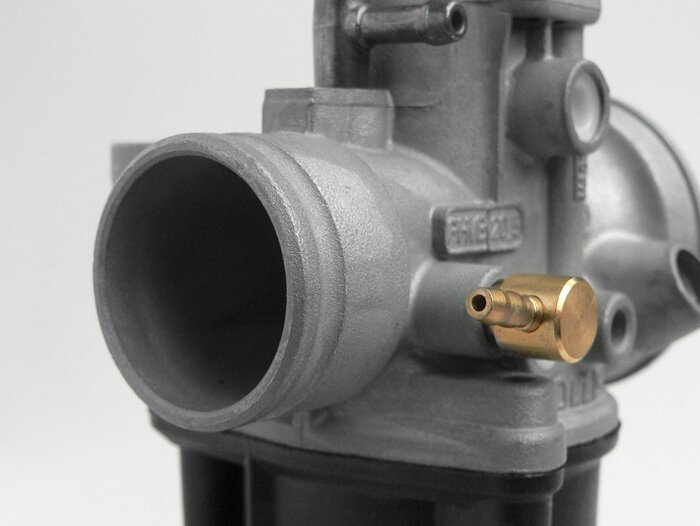

DellOrto carburettors are a constant in the scooter sector. They are very popular with Aprilia, Piaggio and Gilera who use them in their engines ex works. They are characterized by easy assembly and good tuning. If this carburettor is to be used on 50-80cc engines a larger intake manifold must be installed. For Piaggio/Gilera engines you can use the manifold of the 125/180cc models, the outer diameter of the carburettor is 28mm at the manifold side and 41mm at the air filter side. Suitable here are the electric choke of the smaller 10-12-14-17,5mm carburettor types from Dell’Orto, but alternatively a manually operated choke can be used for short distance operation to save fuel. The conversion kit required for this purpose is available separately under article number 2599093.connections for fuel, oil and vacuum are available.Attention: Like all newer Dell’Orto carburettors, the one offered here also has a specially shaped propeller. This can be provided for the simpler adjustment with a slot at the head.
AI-translation
