Description

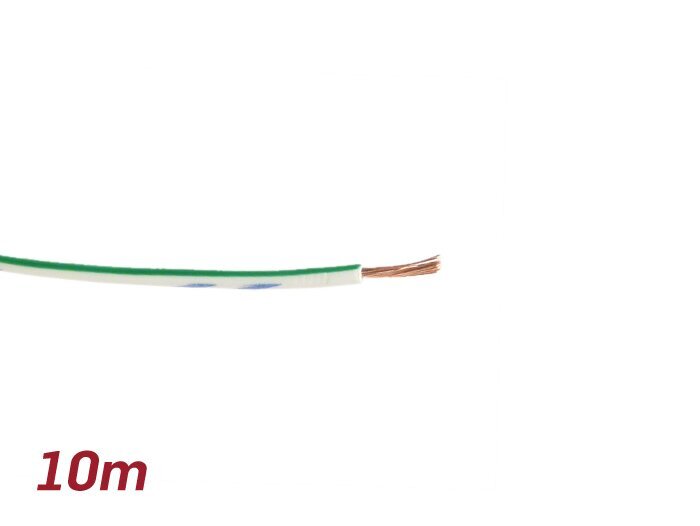

High-quality electric cable with robust PVC sheathing. Available in many different colours, as used for Piaggio vehicles. Available in cable cross sections of 0.85mm² and 2.0mm².
- Outside diameter 0.85mm² = Ø2.3mm
- Outside diameter 2.0mm² = Ø3.1mm
- Cable type: single-core
- Insulation: special PVC according to DIN ISO 6722 and LV112
- Temperature range: -40 to+120°C
- conductor: Bare copper stranded wire
- Length: 10 meters
- Delivery on reel, ideal for storage
NOTE: The 0.85mm² version has the same outer diameter as conventional 0.75mm² cable. Thus, in a self-manufactured cable harness, you have significantly more copper cross-section (= less resistance) with the same outer dimensions!
TIP: We offer numerous small materials such as Piaggio specific cable lugs, bougier tube as well as shrink tubing. We also have crimping pliers and soldering accessories to match.
This makes it easy to produce your own individual cable harness!
