Description

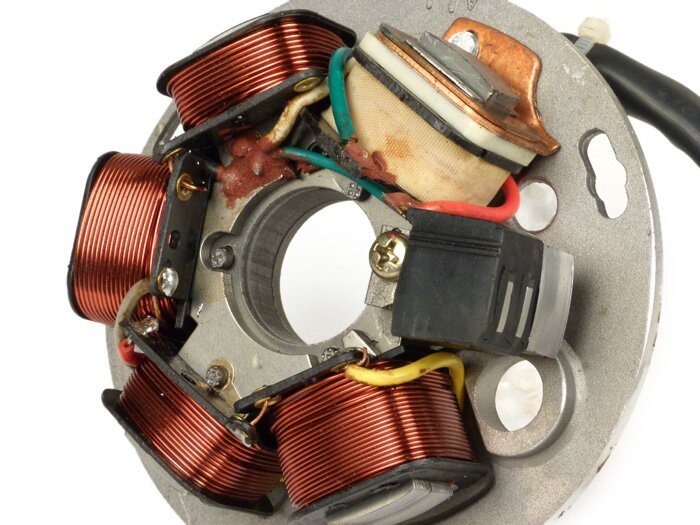

Inexpensive replacement for the original alternator / ignition of the Vespa PX Elestart models up to 1998, whose ignition base plate still has a total of 7 cables.
TECHNIKINFO

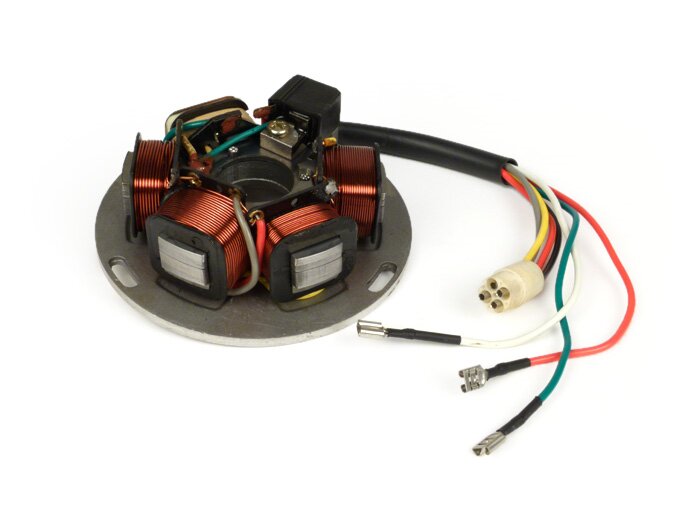

Three loose cables (cable colors green, red, white) are each equipped with a flat plug and are intended for connection to the engine side CDI.The other four cables (cable colours red, black, yellow, grey) are bundled in a round plug and intended for connection with the vehicle-side wiring harness.
TIP
This ignition base plate can also be used in older Vespa PX vehicles with battery (1982-1984).
Here flat plugs were originally used on the vehicle wiring harness. Therefore either cut off the round plug and attach individual plugs or provide the vehicle wiring harness with a round plug.
The cable assignment here in comparison with German PX models:
|
version flat connector |
version Round connector |
|
violet |
grey |
|
red |
red |
|
yellow |
yellow |
|
black |
black |
This CBP can also be used to convert Vespa PX models with contact ignition (1977-1981) can be used on an electronic ignition.
