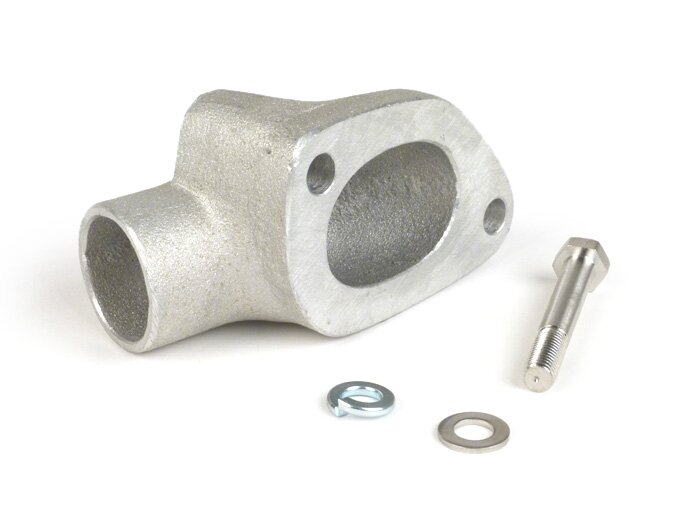

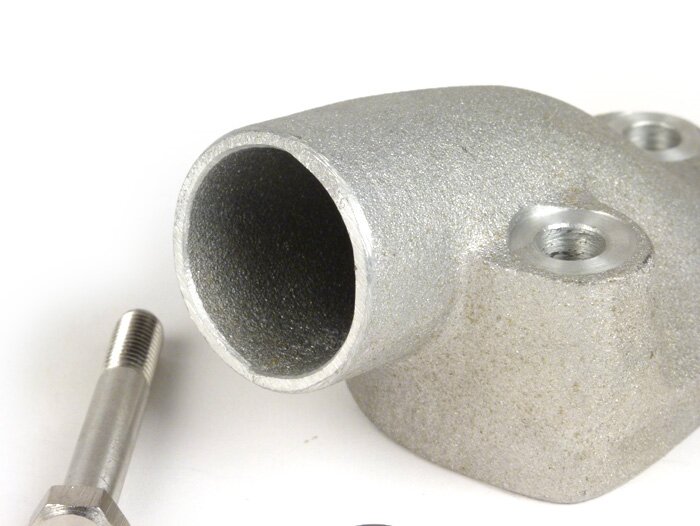

Lambretta intake manifold from MB Developments for piston controlled Lambretta cylinders with 200 – 250 cc displacement. Herewith carburettors with 30 mm connection width can be installed. We recommend the Mikuni TM 24 or the Dellorto PHBL 25.
If necessary, the original air filter box can be used with these combinations. For an optimal performance we recommend the optimized bgm air filter box (BGM4488).

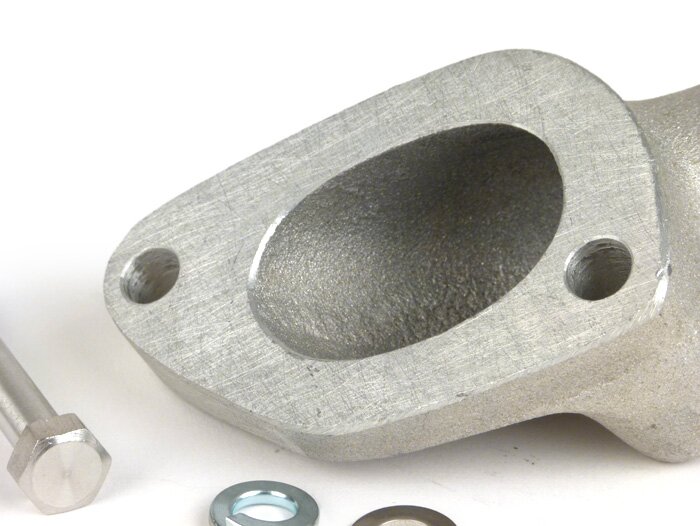

Under certain circumstances the sealing surfaces of the intake manifold and cylinder inlet must be adapted to each other. To do this, use an inlet gasket as a template and adjust the areas with the Dremel.
Included in delivery is a M7 screw, which replaces the long stud bolt. When using the screw, the engine does not have to be lowered to remove the intake.
You can find suitable connecting rubbers under the article numbers: 7670780 or 1110010.
